โคมไฟถนนแอลอีดี รุ่น HL-LD125A
฿2,000.00 – ฿5,300.00

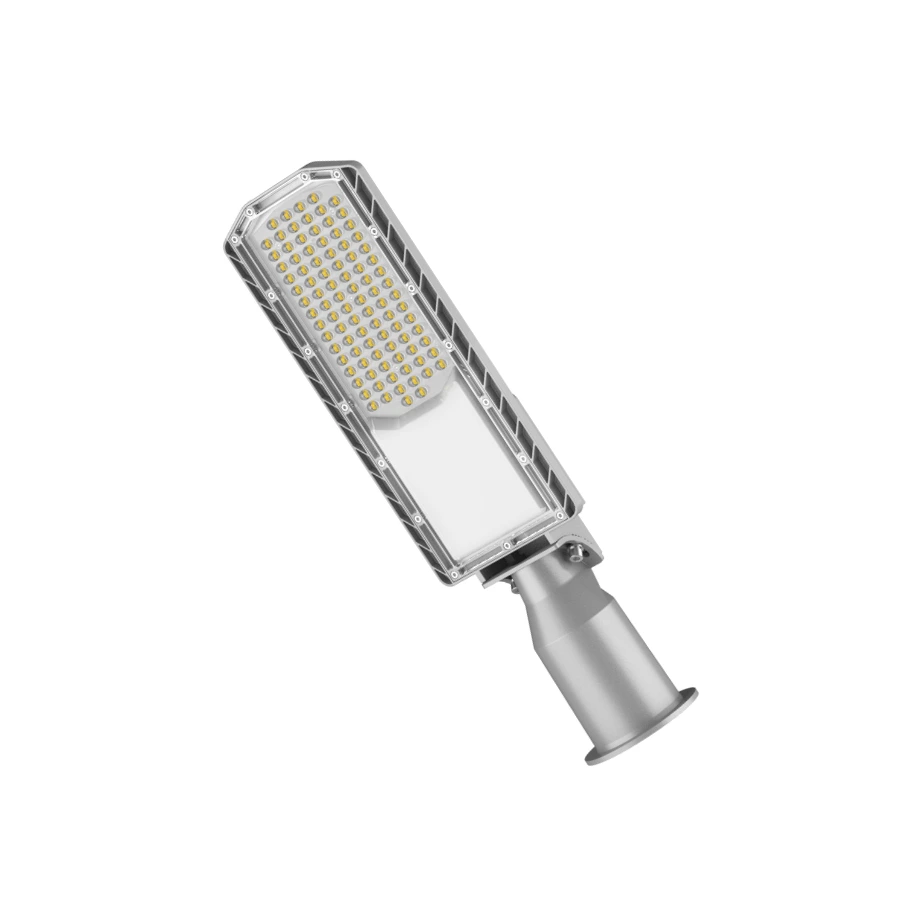

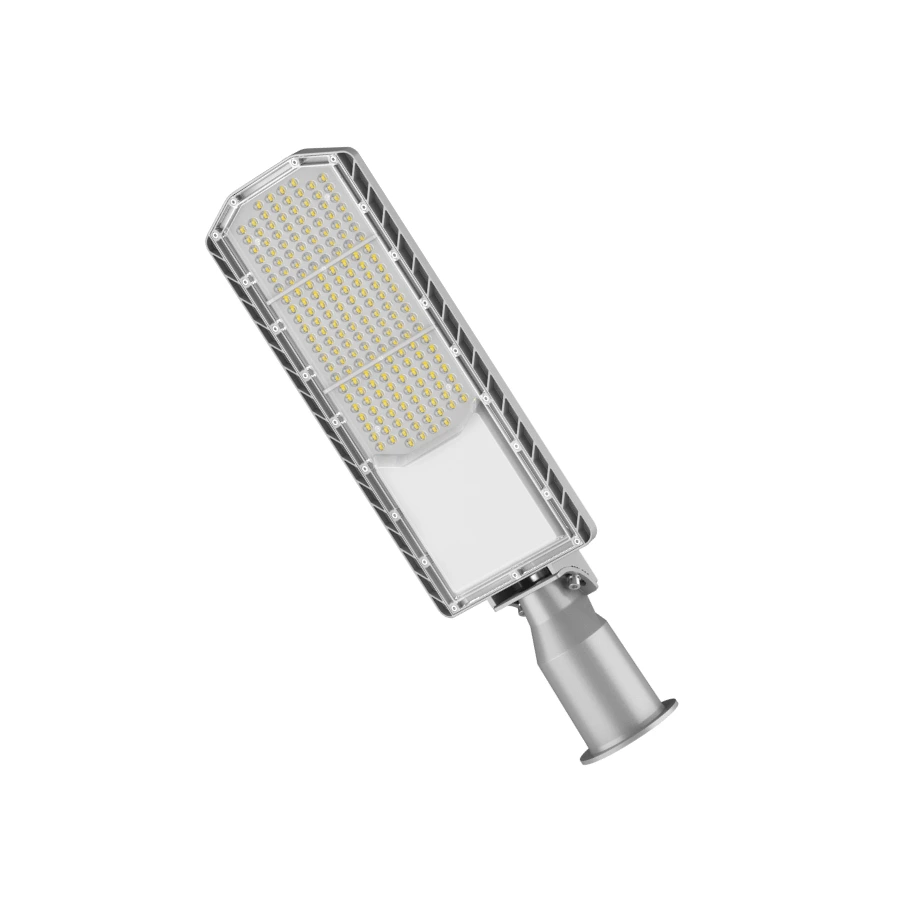

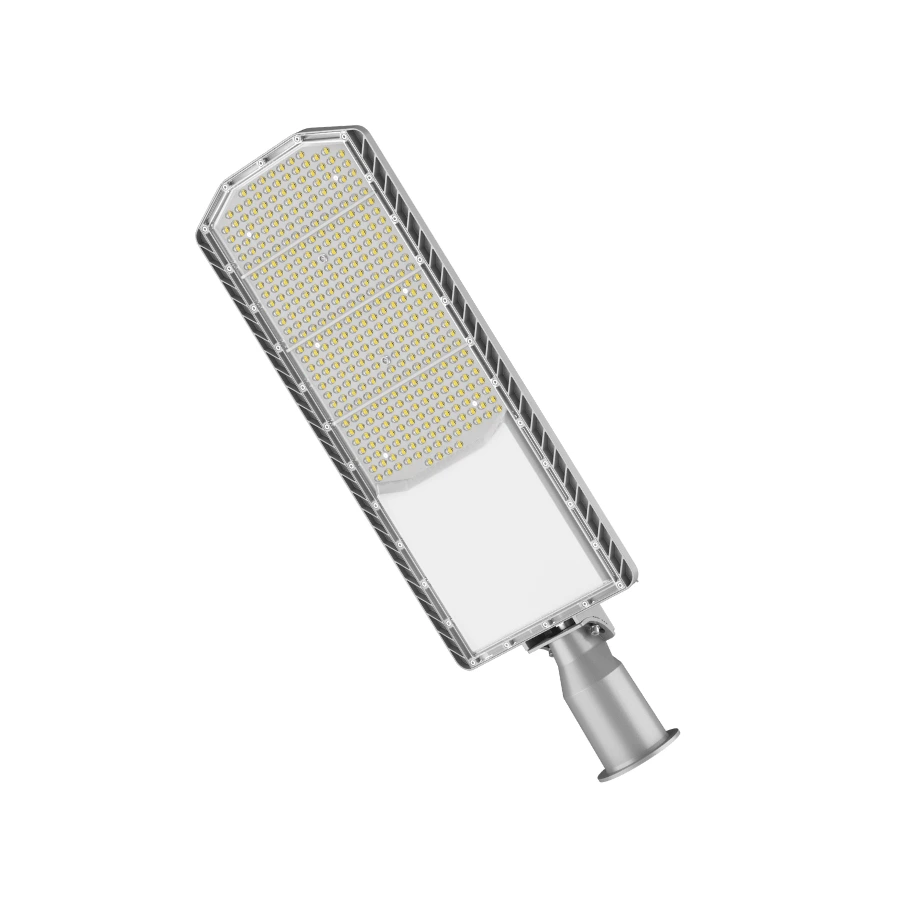

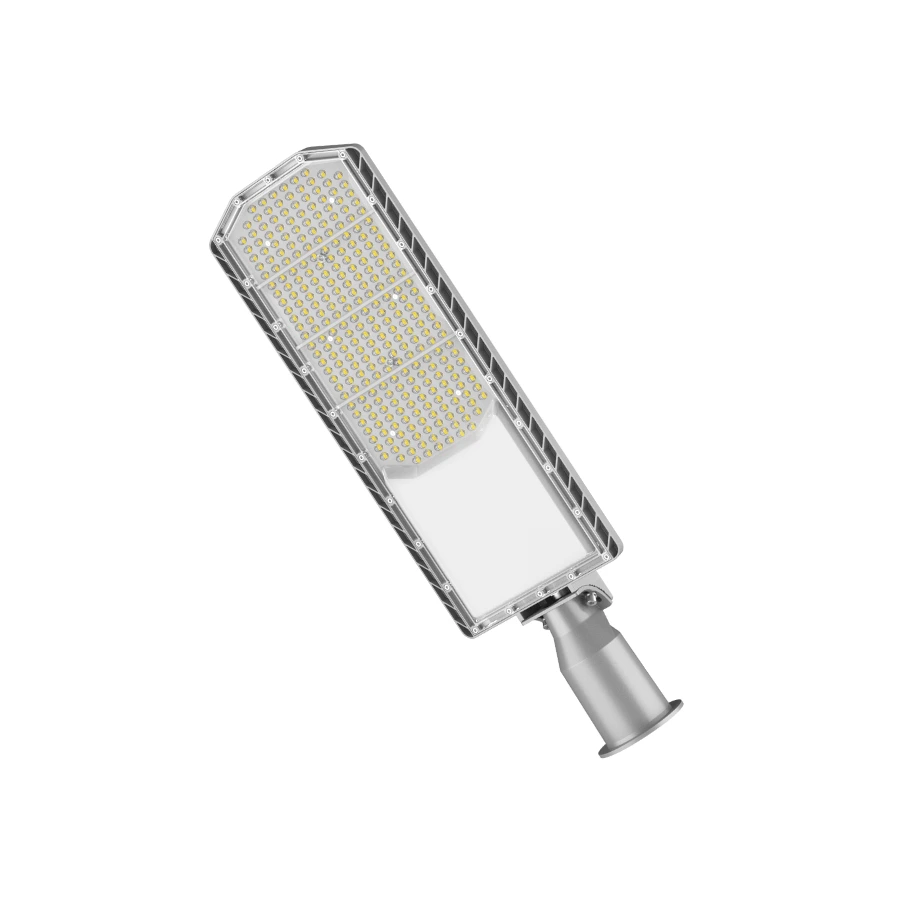

HL-LD125A LED Street Light
The LD125A Series LED Street Light is a next-generation luminaire engineered for high-performance outdoor lighting applications such as public roads, highways, parking areas, and industrial estates. It features high-lumen LUMILEDS LEDs, and robust aluminum housing with a precision polycarbonate lens. Offering up to 130 lm/W luminous efficacy, Beam Angle Type II, and IP65 weather resistance, LD125A series ensures superior energy savings, enhanced light distribution, and long-term durability for demanding urban environments.
Key Features
-
High Efficacy: Up to 130 lm/W
-
Power Options: 50W to 200W available
-
LED Source: LUMILEDS
-
Voltage Range: AC100–277V, 50/60Hz
-
High Power Factor: >0.95
-
Low THD: <15%
-
Beam Angle: Type II
-
Durability: Aluminum housing with PC lens
-
IP Rating: IP65, water & dust protection
-
Lifespan: 50,000 hours
-
CCT Options: 3000K / 4000K / 6500K
Technical Specifications
| Specification | HL-LD-125A-50W | HL-LD-125A-100W | HL-LD-125A-150W | HL-LD-125A-200W |
|---|---|---|---|---|
| Power | 50W | 100W | 150W | 200W |
| Lumen Output | 7,000 lm | 14,000 lm | 21,000 lm | 28,000 lm |
| Voltage | AC100V–277V, 50/60Hz | |||
| LED Module | Philips 2835 | |||
| Driver | ZH-Driver | |||
| Beam Angle | 70° × 140° | |||
| CCT | 3000K / 4000K / 6500K | |||
| CRI | > 80 | |||
| Power Factor | > 0.95 | |||
| Material | Aluminum Die-Casting | |||
| Lens | Polycarbonate (PC) | |||
| IP Rating | IP65 | |||
| Pole Size | 60 mm | |||
| Dimensions (mm) | W138 × D96 × H477 | W177 × D96 × H566 | W210 × D96 × H650 | W244 × D96 × H719 |
| Weight | 1.0 kg | 1.2 kg | 2.2 kg | 3.0 kg |
| Power Consumption |
50W ,100W ,150W ,200W |
|---|
