โคมไฟสาดแสงแอลอีดี รุ่น HL-TG1108
HL-TG-1108 LED Flood Light
The HL-TG-1108 Series is a high-power modular LED floodlight engineered specifically for professional sports fields, stadiums, and large-area lighting applications. Featuring advanced Philips Lumileds 2835 LEDs, premium MEAN WELL drivers, and a rugged aluminum heat sink structure, this series delivers unparalleled lighting performance, up to 225,000 lumens. With a modular design (2 to 5 modules), adjustable bracket mounting, IP66-rated protection, and a wide range of beam angles, the HL-TG-1108 ensures precise, high-lumen output and superior durability in any outdoor condition.
Ideal Applications
-
Soccer Fields
-
Basketball Courts
-
Tennis & Hockey Fields
-
Swimming Pools
-
Athletics Tracks
-
Stadiums & Arenas
-
High mast area lighting
Key Features

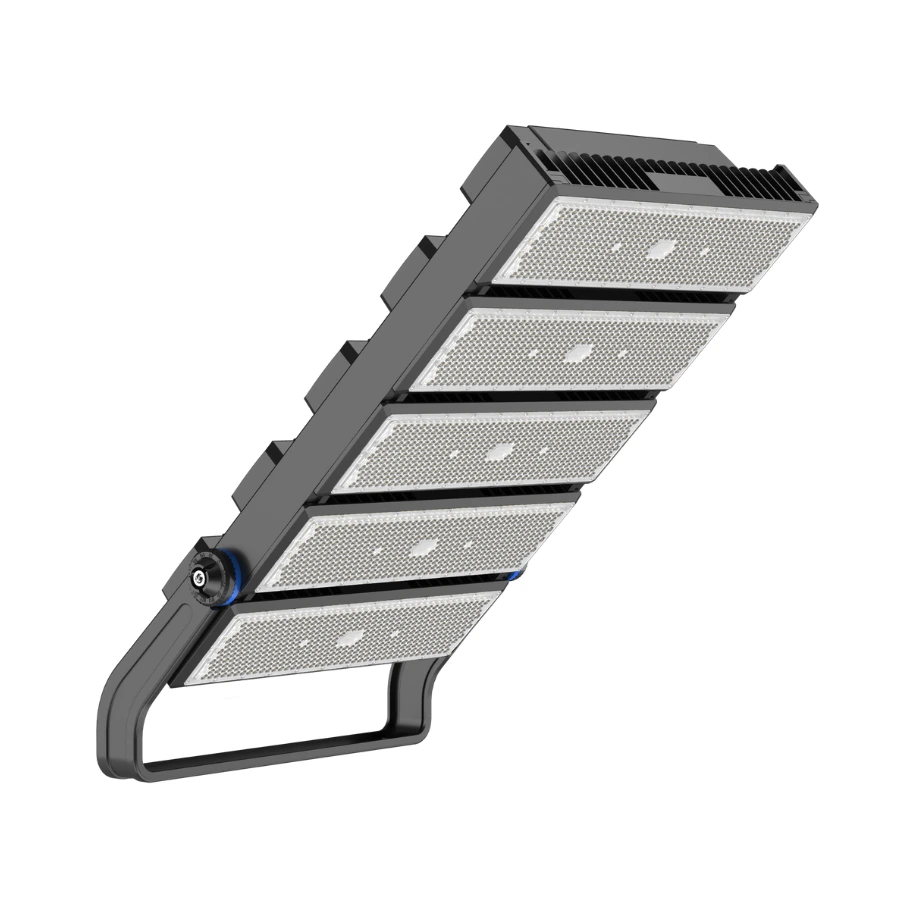

- Modular design: Available in 600W, 900W, 1200W, and 1500W
- Premium 2835 Lumileds LED chips with ultra-high efficiency
- Powerful MEAN WELL driver with 10KV built-in surge protection
- Luminous flux up to 144lm/W
- Beam angle options: 25° / 45° / 60° / 90° / 60×25°
- Color temperature options: 3000K / 4000K / 6500K and other
- High CRI >80 for natural color rendering
- Power Factor >0.95, THD <20%
- Long lifespan and low maintenance
- Durable Aluminum extrusion + die-cast housing
- UV-resistant polycarbonate lens
- Adjustable bracket mounting
- IP66 waterproof and dustproof rating
- Wide operating temperature: -35°C to +50°C
- 3-year warranty
Technical Specifications

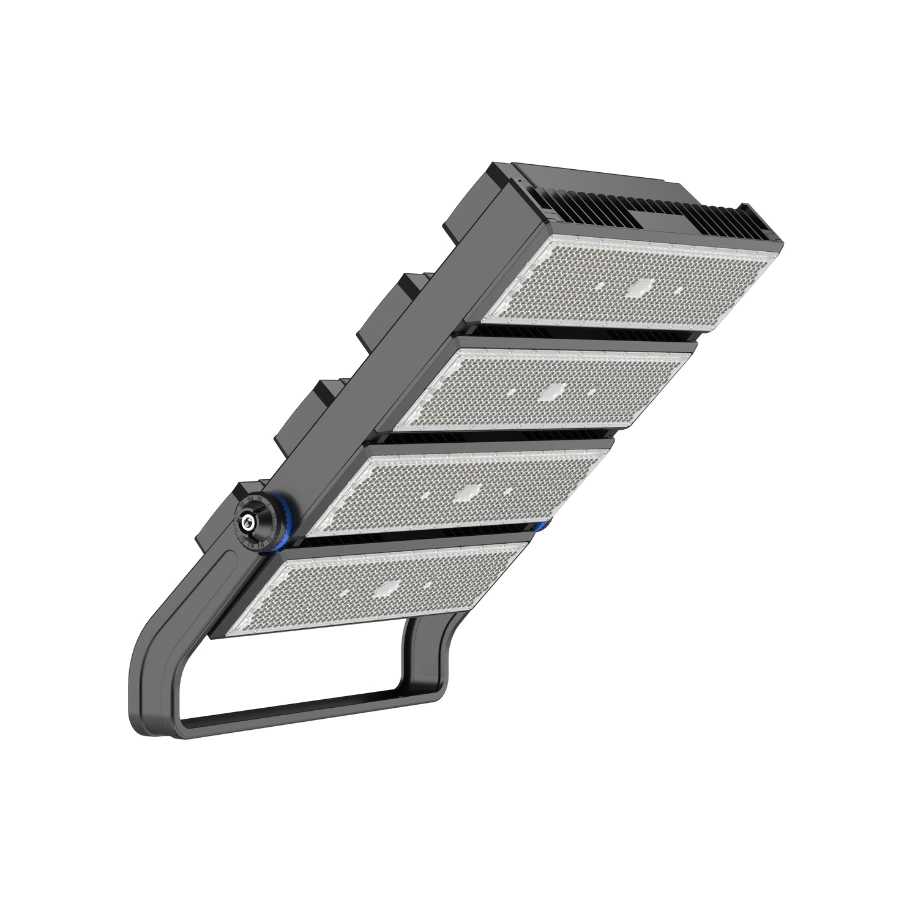

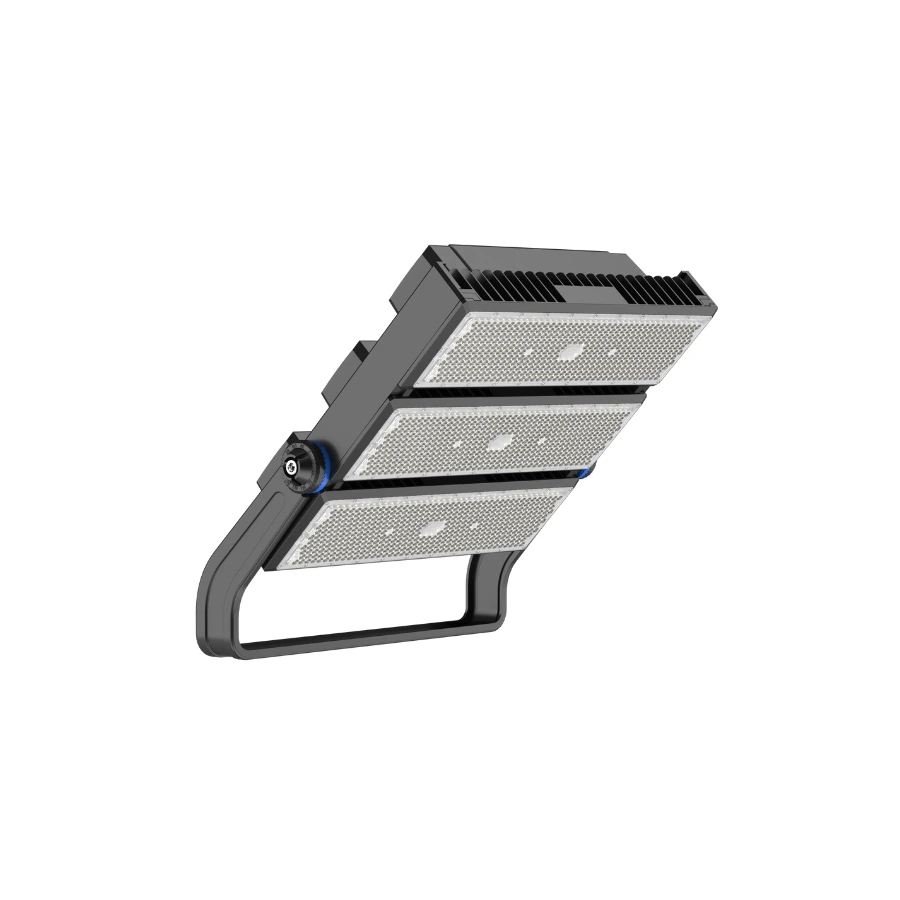

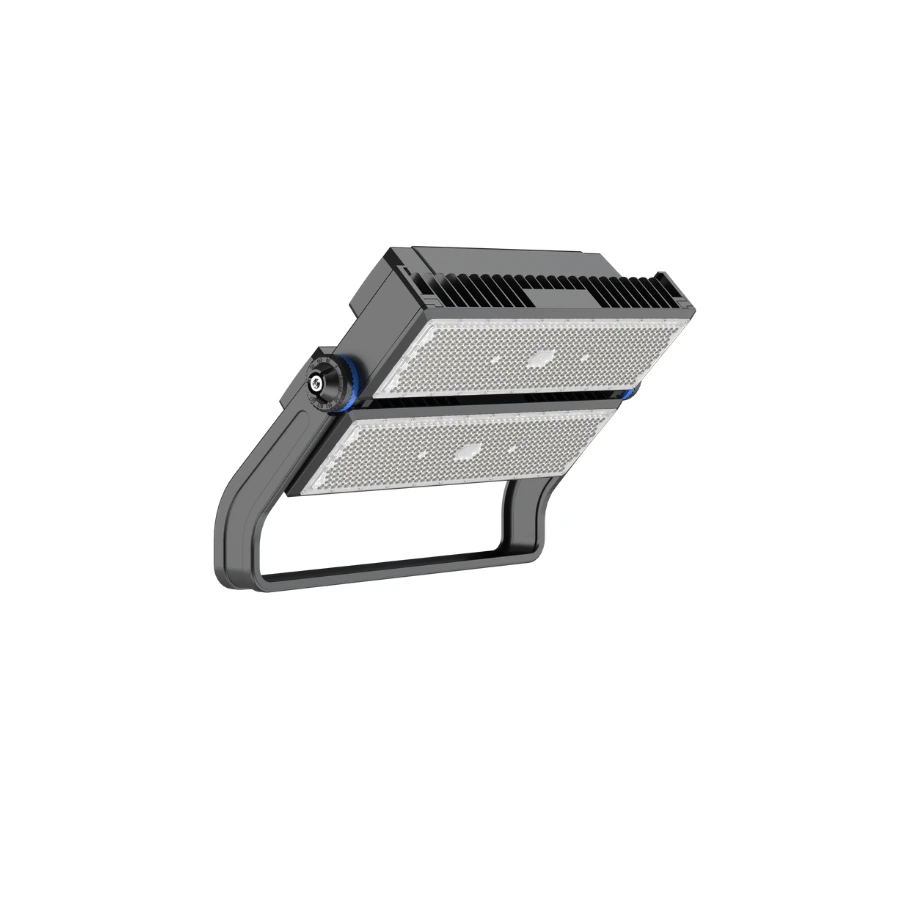

| Model | HL-TG-1108-600W | HL-TG-1108-750W | HL-TG-1108-1000W | HL-TG-1108-1200W |
|---|---|---|---|---|
| LED Module | 2 Module | 3 Module | 4 Module | 4 Module |
| Power | 500W | 750W | 1000W | 1200W |
| Lumen Output | 72,000 lm | 108,000 lm | 144,000 lm | 180,000 lm |
| Input Voltage | AC100–277V, 50/60Hz | |||
| Beam Angle | 25° / 45° / 60° / 90° / 60×25° | |||
| CCT Options | 3000K / 4000K / 6500K | |||
| CRI (Ra) | >80 | |||
| Power Factor | >0.95 | |||
| Surge Protection | 10KV L-N-E (Built-in Driver) | |||
| Material | Aluminum Extrusion & Die-Casting | |||
| Face Cover | Polycarbonate (PC) | |||
| Mounting | Adjustable Bracket | |||
| Dimensions (mm) | W560×D148×H447 | W560×D148×H604 | W560×D148×H761 | W560×D148×H918 |
| Weight | 14 kg | 20 kg | 26 kg | 32 kg |
| IP Rating | IP66 | |||
| Working Temp. | -35°C to +50°C | |||
| Warranty | 3 Years |
| Power Consumption |
500W ,750W ,1000W ,1200W |
|---|
