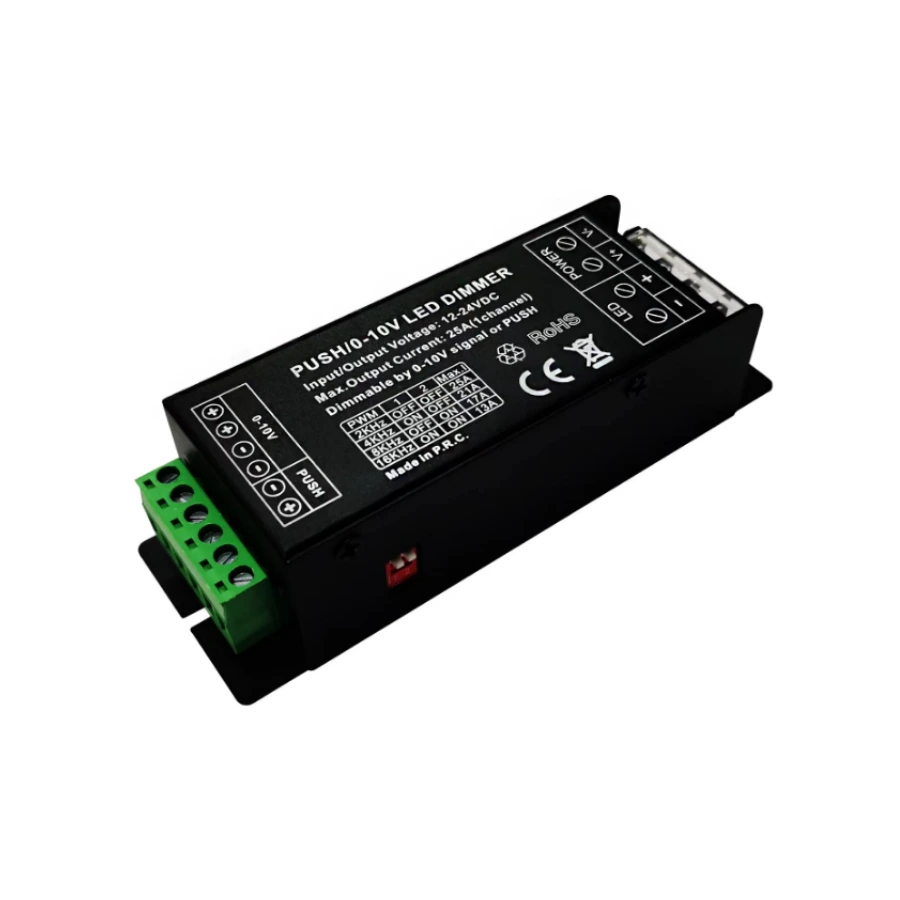

HL-SZ200-0-10V-Dimmer
฿1,200.00
The HL-SZ200-0-10V-Dimmer is a high-performance LED dimmer that converts standard 0–10V analog signals into PWM dimming signals for LED lighting. Supporting both 0–10V and PUSH dimming methods, it enables smooth and stable brightness adjustment from 0–100%. It features adjustable PWM frequency (2KHz to 16KHz), short-circuit protection, and memory function for smart lighting applications.
Description
Key Features
- Dual dimming modes: 0–10V and PUSH dimming
- Converts analog dimming signal to PWM for LED control
- Smooth dimming range: 0%–100%
- Adjustable PWM frequency: 2KHz, 4KHz, 8KHz, 16KHz
- Built-in short-circuit protection
- DC12V–24V input, high current output up to 25A
- Max output: 300W @12V / 600W @24V (at 2KHz PWM)
- Memory function restores last brightness level on power-up
Technical Specifications
| Item | Specification |
|---|---|
| Model | HL-SZ200-0-10V-Dimmer |
| Supply Voltage | DC12V–24V |
| Operating Temperature | -20°C to +60°C |
| Output Channels | 1 Channel (PWM output) |
| Output Current (max) | 25A @2KHz, 21A @4KHz, 17A @8KHz, 13A @16KHz |
| Max Output Power | 300W @12V / 600W @24V (at 2KHz PWM) |
| PWM Frequency | Adjustable: 2KHz (default), 4KHz, 8KHz, 16KHz |
| Dimming Range | 0–100% |
| Control Type | 0–10V analog input & PUSH dimming |
| Signal Consumption | 0.1mA (0–10V input) |
| Static Power Consumption | <1W |
| Memory Function | Yes |
| Short-Circuit Protection | Yes |
| Product Size | 127×42×33 mm |
| Net Weight | 150g |
